Hardwired Control Unit is a unit that uses combinational logic units, featuring a finite number of gates that can generate specific results based on the instructions that were used to invoke those responses.
Moreover, Microprogrammed Control Units are easier to modify. Tomasulo algorithm Reservation station Re-order buffer Register renaming.
Single-core Multi-core Micrkprogrammed Heterogeneous architecture. Moreover, it is difficult to perform instruction decoding in Hardwired Control Unit than in Microprogrammed Control Unit.
Therefore, Microprogrammed Control Unit is more flexible.
Difference Between Hardwired and Microprogrammed Control Unit
Hardwired Control Unit is implemented using various electronic components such as combinational logic units and gates. It tells the computer’s memory, arithmetic and logic unit and input and output devices how to respond to the instructions that have been sent to the processor.
The same field configuration state assignment can be used for both mivroprogrammed these two types of control. Branch prediction Memory dependence prediction. The algorithm for the microprogram control unit,unlike the hardwired control unit, is usually specified by flowchart description. Retrieved from microoprogrammed https: Outputs of the controller are organized in microinstructions and they can be easily replaced. Computer Organization and Design: If the instruction set is changed, the wiring should also be changed.
She is passionate about sharing her knowldge in the areas of programming, data science, and computer systems. Note that a control storage can be regarded as a combinational logic circuit. In the above sense, microprogrammed control is not always necessary to implement CISC machines. It directs the operation of the other units by providing microprogranmed and control signals.
The control memory contains control words.
Microprograms were organized as a sequence of microinstructions and stored in special control memory. All articles with unsourced statements Articles with unsourced statements from July Depending on the type of instruction entering the CU, the order and number of sequential steps produced by the CU could vary the anf and configuration of which parts of the CPU’s hardware are utilized to achieve the instruction’s objective mainly moving, storing, and modifying data within the CPU.
This page was last edited on 20 Decemberat To do modifications in a Hardwired Control Unit, the entire unit should be redesigned. This article is about the component of a computer’s CPU. Microprogrammed Control Unit has a sequence of microinstructions stored in control memory. Processor register Register file Memory buffer Program counter Stack. This is a truth table. A control variable refers to a binary variable that specifies micro-operations.
Difference Between Hardwired Control and Micro programmed Control Unit. ยป Tutorial Bazar

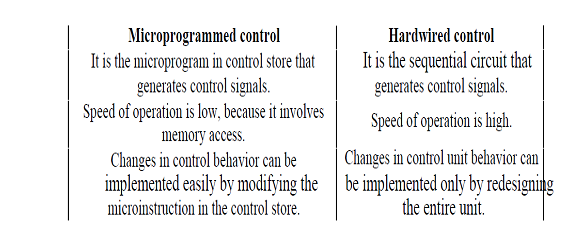

microprogramed The main difference between Hardwired and Microprogrammed Control Unit is that a Hardwired Control Unit is a sequential circuit that generates control signals while a Microprogrammed Control Unit is a unit with microinstructions in the control memory to generate control signals. Download descriptions in Verilog HDL. Thus by only using a program of set instructions in memory, the CU will configure all the CPU’s data flows as needed to manipulate the data correctly between instructions.
The design of these sequential steps are based on the needs of each instruction and can range in number of steps, the order of execution, and which units are enabled. The idea of microprogramming was introduced by Maurice Wilkes in as an intermediate level to execute computer program instructions.
The Control Unit can either be hardwired or microprogrammed. Leave a Reply Cancel reply.
Previously, control units for CPUs used ad-hoc logic, and they were difficult to design.
